CASE STUDY
Successful 10-Year Trial Leads to SeaShield™ Systems Specification at Broughty Ferry
SubSea & Splash Zone Coatings
Project Data
| Location | Dundee, Scotland |
| Products | SeaShield 70™ System and SeaShield 2000FD™ System |
| Contractor | Shearwater Marine Services Ltd. |
| Consultant | Wallace Stone |
| Date | 2025/26 |
Project Details
In 2015 Winn and Coales (Denso) Ltd were asked to recommend solutions for the protection of jetty piles at a coastal emergency response facility in Broughty Ferry, Scotland. The jetty structure on site consists of piles supporting a walkway to the landing stage, where larger vessels can moor, and piles within the berthing area itself, which also feature large brackets supporting a wave break structure.
Winn and Coales, with the assistance of Shearwater Marine Services Ltd, applied the SeaShield 70™ System – which consists of Denso Paste S105™, Denso™ Profiling Mastic, SeaShield™ Marine Piling Tape and Denso™ Glass Outerwrap – to a bracket on one of the landing stage piles to demonstrate the suitability of the system for this application.
In addition to protecting jetty piles, the SeaShield 70 System has the flexibility to provide long term protection to various obstructions such as crossbeams, anode brackets and (as in this case) bracket arrangements for the wave break structure.
Following a 10-year trial demonstrating long term performance, the customer appointed Wallace Stone, Consulting Civil Engineers, to produce tender documents for the protection of all the piles. After reviewing the success of the trial and holding discussions with Winn and Coales (Denso) Ltd, it was decided to specify the use of the SeaShield 70 System within the wave break area and the SeaShield 2000FD™ System on the walkway piles.
The SeaShield 2000FD System – consisting of Denso Paste S105, SeaShield Marine Piling Tape and SeaShield 2000FD™ Jackets – was selected for the walkway piles as these were more exposed to the tidal currents. The SeaShield 70 System was used in combination with the heavy-duty SeaShield 2000FD System where the cathodic protection system was attached to the piles.
Shearwater Marine Services were subsequently awarded the contract for the completion of the works and the SeaShield Systems were successfully installed in 2025/26.

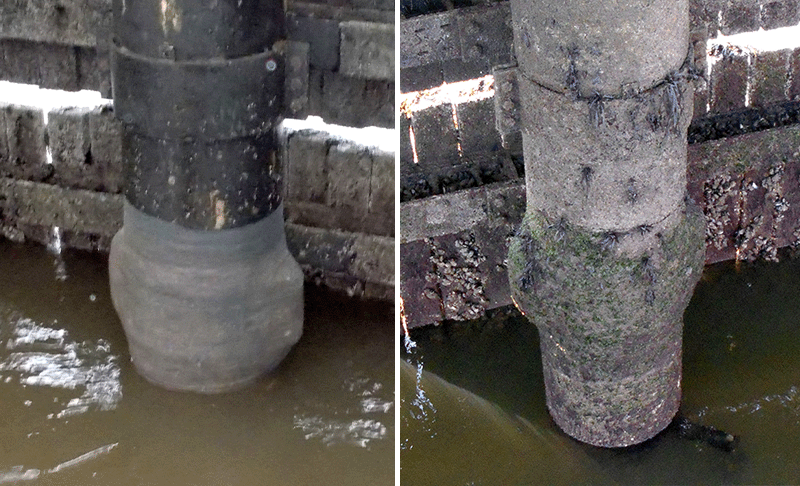

The SeaShield 70 System trial at the time of application in 2015 (left) and after the 10 year trial period (right). Note the bracket supporting the wave brace structure located above the SS70 trial.

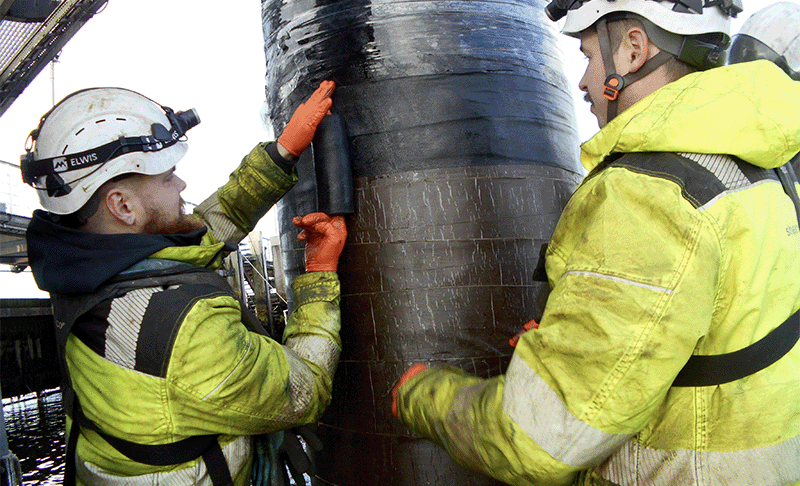

The contractor applying Denso Glass Outerwrap circumferentially over the SeaShield Marine Piling Tape to a pile located in the berthing area at the end of the walkway.

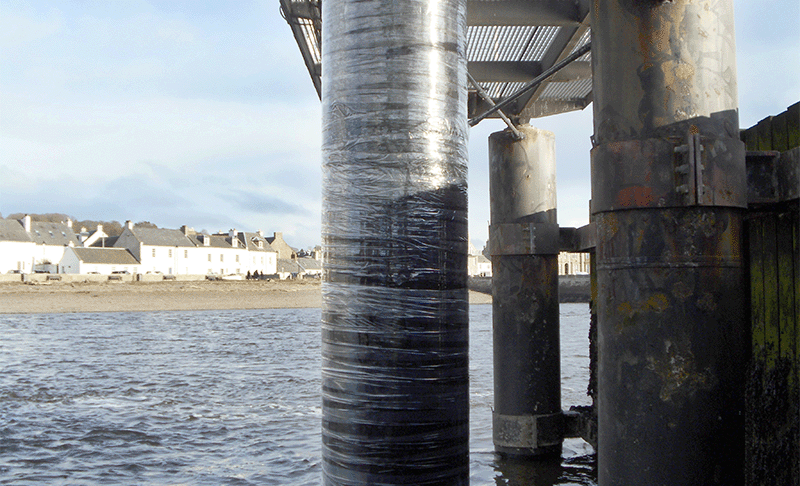

Denso Glass Outerwrap is compressed and cured under a layer of Denso PolyWrap (which is later removed and disposed responsibly).

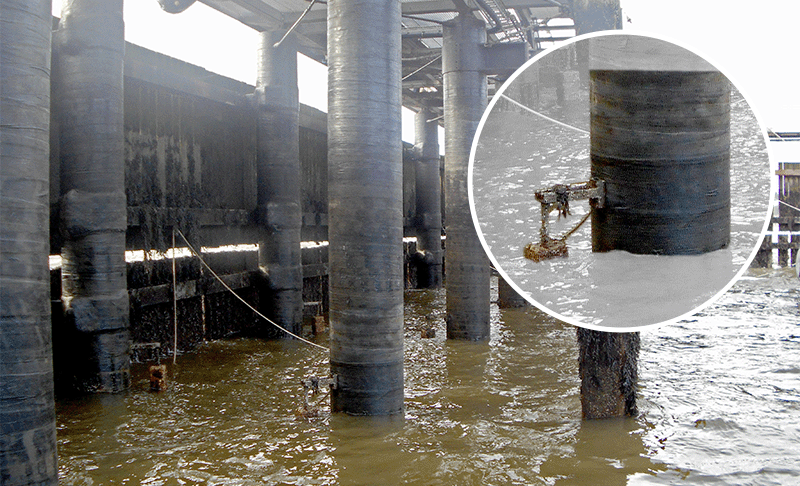

The completed SeaShield 70 System application. Note the brackets located at the bottom of each pile (see inset for close up).

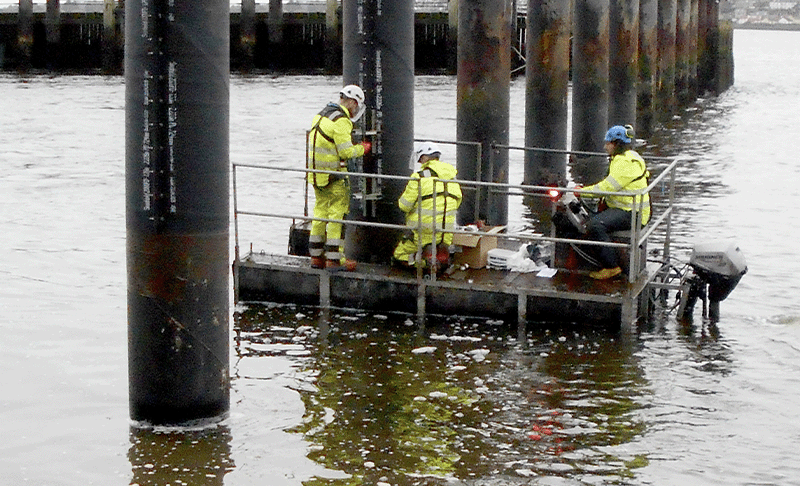

Shearwater Marine Services applying the SeaShield 2000FD System's heavy-duty HDPE jackets to the walkway jetty piles.

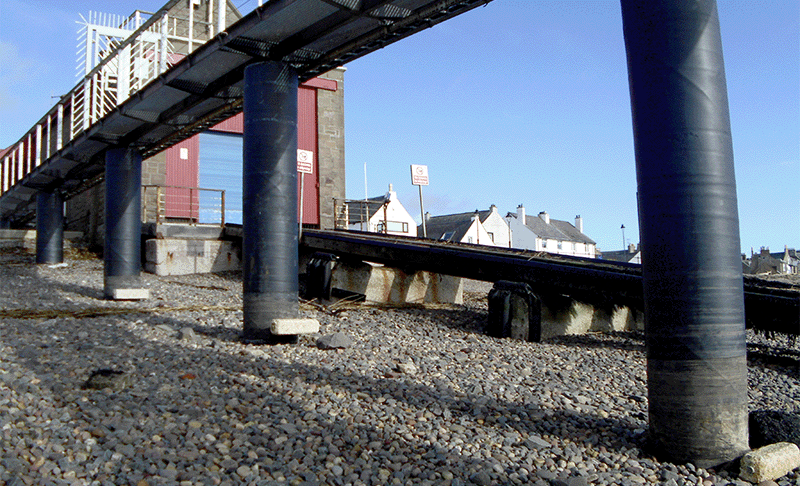

The completed application of the SeaShield 2000FD System to the walkway piles.
